Product Description
Supports for LGA1155 2nd Generation Intel Core Processors, Innovative 20 phase power VRM design for optimum power efficiency, Touch BIOS delivers No Need for Reboot to more easily modify BIOS settings ,4X performance boost with the Intel Smart Response Technology ,Ultra Durable 3 Technology with copper cooled quality for lower working temperature, Supports USB 3.0 with superfast transfer rates of up to 5 Gbps, GIGABYTE 3x USB Power with On/Off Charge USB ports, High speed SATA3 storage interface with superfast 6Gbps link speed ,SLI and CrossFireX multi-graphics support for ultimate graphics performance ,Hybrid EFI technology with DualBIOS for 3TB HDD support, XHD technology accelerating hard drive performance with ease, Supports Dolby Home Theater audio, Stylish Power/reset/Clr CMOS onboard button for easily operation on the workbench .
| Price: | $325.28 |
| as of Sun, 17 Feb 2013 05:40:14 GMT | |
Product Details
- Brand: Gigabyte
- Model: GA-Z68XP-UD5
- Original language: English
- Number of items: 1
- Dimensions: 4.00" h x 11.00" w x 14.00" l, 4.70 pounds
Features
- Core i7/i5/i3 in LGA 1155 package , chipset: Intel Z68 Express Chipset
- Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory, Dual channel memory architecture, DDR3 2133/1866/1600/1333/1066 MHz memory modules
- Audio: Realtek ALC889 codec , High Definition Audio , 2/4/5.1/7.1-channel, Dolby Home Theater, LAN: 10/100/1000 Mbit
- Expansion Slots: 1 x PCI Express x16 slot running at x16 ,1 x PCI Express x16 slot running at x8 ,1 x PCI Express x16 slot, running at x4 ,2 x PCI Express x1 slots,2 x PCI slots, Support for 2-Way AMD CrossFireX/NVIDIA SLI technology
- Storage Interface: 2 x SATA 6Gb/s connectors , 4 x SATA 3Gb/s connectors ,Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10, 2 x eSATA 6Gb/s connectors Support for RAID 0 and RAID 1
- Back Panel Connectors:1 x PS/2 keyboard/mouse port, 1 x optical S/PDIF Out connector, 1 x coaxial S/PDIF Out connector, 2 x IEEE 1394a ports, 4 x USB 2.0/1.1 ports, 4 x USB 3.0/2.0 ports, 2 x eSATA/USB Combo connectors, 1 x HDMI port, 1 x RJ-45 port, 6 x audio jacks,
- Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector,2 x SATA 6Gb/s connectors ,4 x SATA 3Gb/s connectors ,1 x CPU fan header ,3 x system fan headers, 1 x power fan header, 1 x Chipset fan header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 2 x USB 2.0/1.1 headers, 2 x USB 3.0/2.0 headers, 1 x IEEE 1394a header, 1 x clearing CMOS button, 1 x power button, 1 x reset button,
- USB: Up to 10 USB 2.0/1.1 ports , Up to 8 USB 3.0/2.0 ports , up to 3 IEEE 1394 ports
From the Manufacturer
Key Feature
- Supports for LGA1155 2nd Generation Intel® CoreTM Processors
- Innovative 20 phase power VRM design for optimum power efficiency
- Touch BIOSTM delivers No Need for Reboot to more easily modify BIOS settings.
- 4X performance boost with the Intel® Smart Response Technology
- Ultra Durable 3 Technology with copper cooled quality for lower working temperature
- Supports USB 3.0 with superfast transfer rates of up to 5 Gbps
- GIGABYTE 3x USB Power with On/Off Charge USB ports
- High speed SATA3 storage interface with superfast 6Gbps link speed
- SLI and CrossFireX multi-graphics support for ultimate graphics performance
- Hybrid EFI technology with DualBIOS for 3TB HDD support
- XHD technology accelerating hard drive performance with ease
- Supports Dolby Home Theater audio
- Stylish Power/reset/Clr CMOS onboard button for easily operation on the workbench
Overview
GIGABYTE Touch BIOSTM (Patent Pending)
An Innovative New Way to Modify BIOS Settings
Navigating through the BIOS to change system settings can be a daunting task for users not familiar with control "F" functions and mouse-less navigation. While some EFI BIOS try to address this with a mouse friendly environment, many implementations still lack a certain ease-of-use necessary for most people. With GIGABYTE Touch BIOSTM, GIGABYTE engineers have completely re-imagined how users can interact with their BIOS, allowing for a more intuitive user experience. In fact, with a touch screen monitor, GIGABYTE Touch BIOSTM is as easy to use as most apps on your iPhone.
Supports Intel® Smart Response Technology
* 4X+ Faster than HDD-only system in PC Mark Vantage(HDD Score)
GIGABYTE EZ Smart Response
The GIGABYTE EZ Smart Response utility is a simple application that allows users to quickly and easily configure their system for Intel® Smart Response Technology. In the past, enabling Intel® Smart Response meant users needed to enter the BIOS in order to configure their system for RAID mode, which then required a complete reinstall of the operating system. Once that processes was complete, users then needed to install the Intel® Rapid Storage Utility as well as configure Intel's Smart Response Technology. GIGABYTE EZ Smart Response does all of this automatically, without users having to perform a complicated install process. This allows them to quickly and effortlessly enjoy a significant boost in system performance.
Built-in Visuals
Built-in Visuals GIGABYTE Z68 motherboards offer support for several 2nd generation Intel® CoreTM Built-in Visual Features.
Intel® Quick Sync Video
Up to 2X faster media processing than any other solution for incredibly fast conversion of video files for portable media players or online sharing.
Intel® InTruTM 3D
Users can enjoy the ultimate 3D visual experiences–seamlessly–from their PC. Now you they can watch their favorite 3D movies with Blu-ray Stereo 3D playback using active shutter 3D glasses. It delivers it all in 1080p full, high-definition resolution on the TV over HDMI 1.4.
Intel® Insider
Allows users to view premium 1080p HD content on their GIGABYTE Z68 series system.
Switchable Graphics with LucidLogix Virtu GPU Virtualization
GIGABYTE Z68 motherboards are enabled with LucidLogix Virtu GPU Virtualization technology which allows users to dynamically switch between their built-in graphics and their high-end, 3D discrete graphics cards. This is ideal for gamers who require high-resolution gaming and still want to enjoy the built-in media features of 2nd generation Intel® CoreTM processors. In so doing, switchable graphics helps to dramatically reduce PC graphics power consumption.
Multi-display support with 2 way SLITM and 2 way CrossFireX / DVI
Flexible graphics capabilities - Up to 2 VGA cards are supported for either 2 way CrossFireXTM or 2 way SLITM action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Specifications

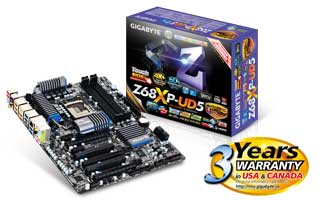

| Model: | GA-Z68XP-UD5 |
| CPU Support | 2nd Generation Intel Core Processors |
| CPU Socket | LGA1155 |
| DMI | 20Gb/s |
| Chipset | Intel Z68 chipset |
| Onboard Graphics | Intel HD Graphics 2000/3000 |
| Graphics Interface | 3*PCI-E 2.0x16 slot(2*PCIEx8+1*PCIEx4) |
| Memory Type | Dual Channel DDR3 2133/1333/1066 MHz |
| Memory DIMM | 4*DDR3(Max 32GB) |
| Expansion Slots | 2*PCI-Ex1+2*PCI |
| ATA connector | 2*SATA 6Gb/s+4*SATA 3Gb/s+2*eSATA 6Gb/s |
| ASTA RAID | RAID 0,1,5,10 |
| USB | 8*USB3.0+10*USB2.0 |
| Audio | 8-channel HD |
| 1394 / LAN | 3*1394a / GbE LAN |
| Features & Software | Touch BIOS, Smart Response,Lucid Virtu, Max CPU Power, 20 Phase, Dual Power, VRD12, On/Off Charge,Ultra Durable 3, Smart6, SLI+CrossFireX, DualBIOS 3TB+ HDD Support, Turbo XHD, Hotkey OC, Cloud OC, HDMI, Dolby Home Theater,108dB SNR Blu-ray, ErP Ready |
| Form Factor | ATX (305x244) |
